Broiler equipment is organized around fast growth, final live weight, floor support and flock exit. Cage rows, feed and water access, airflow and manure separation are considered as one operating system.
Broiler equipment is organized around fast growth, final live weight, floor support and flock exit. Cage rows, feed and water access, airflow and manure separation are considered as one operating system.
Frame joints, row ends and floor elements carry the changing bird load. The floor surface must support feet while remaining cleanable between flocks.
Feeders and drinkers are placed for small chicks first, then checked again against larger birds and final clearance.
Tier gaps, inlet direction and exhaust capacity must be calculated together to avoid stagnant air between levels.
Each catalogue image explains a visible structure or process; pictured configurations are not a fixed supply list.
The supplied house image places broilers within a tiered system and helps review aisles, tiers, feed and water. It does not establish one fixed cage model or stocking capacity.
Configure for your site：Check floor area, airflow, feed and water for each growth stage.

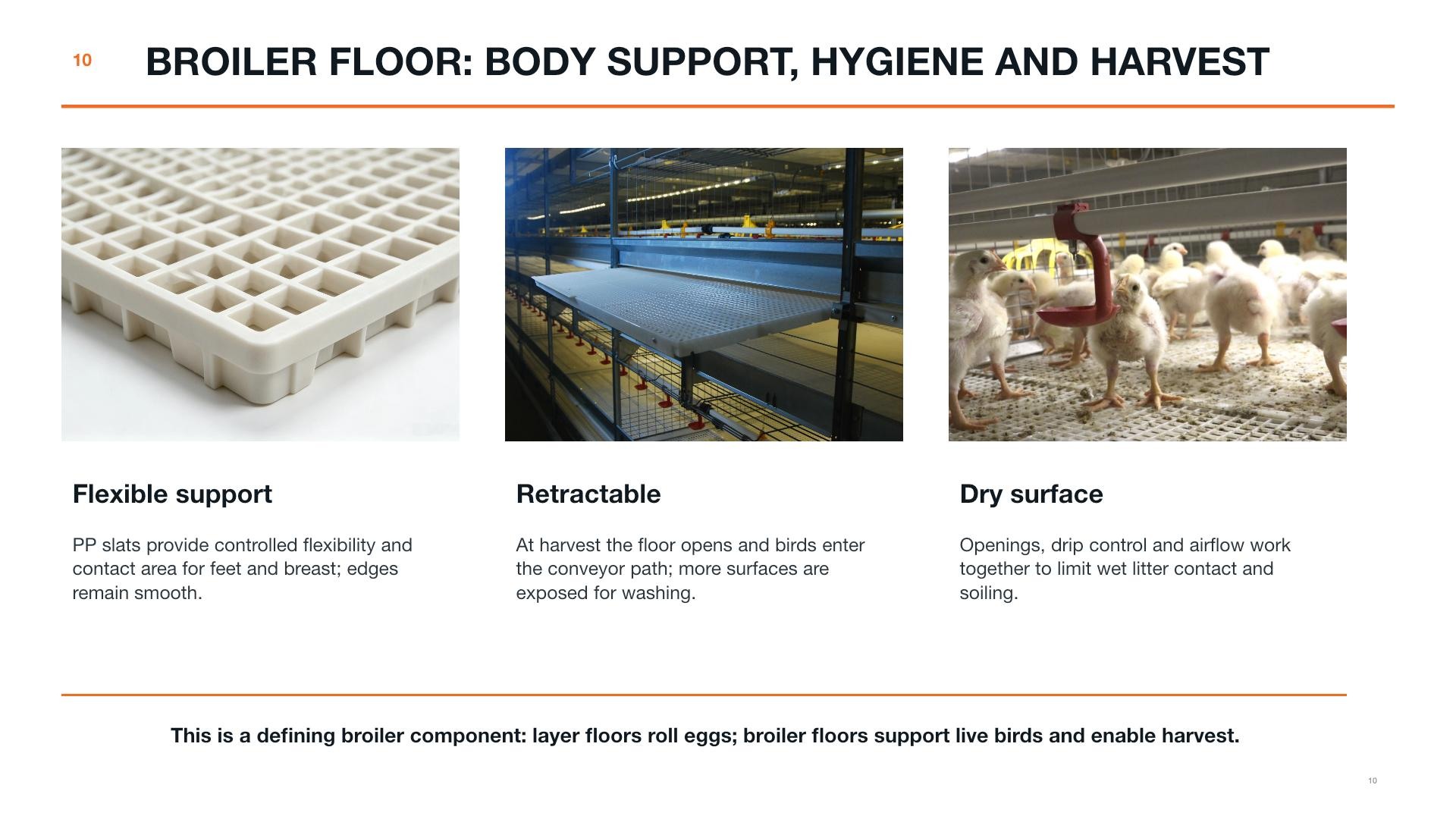

The supplied page compares floor support, opening mechanisms and cleaning. Because broilers remain in contact with the floor, support, foot contact, washing and harvest method must be specified together.
Configure for your site：Confirm floor construction, load, washdown and harvest interface.

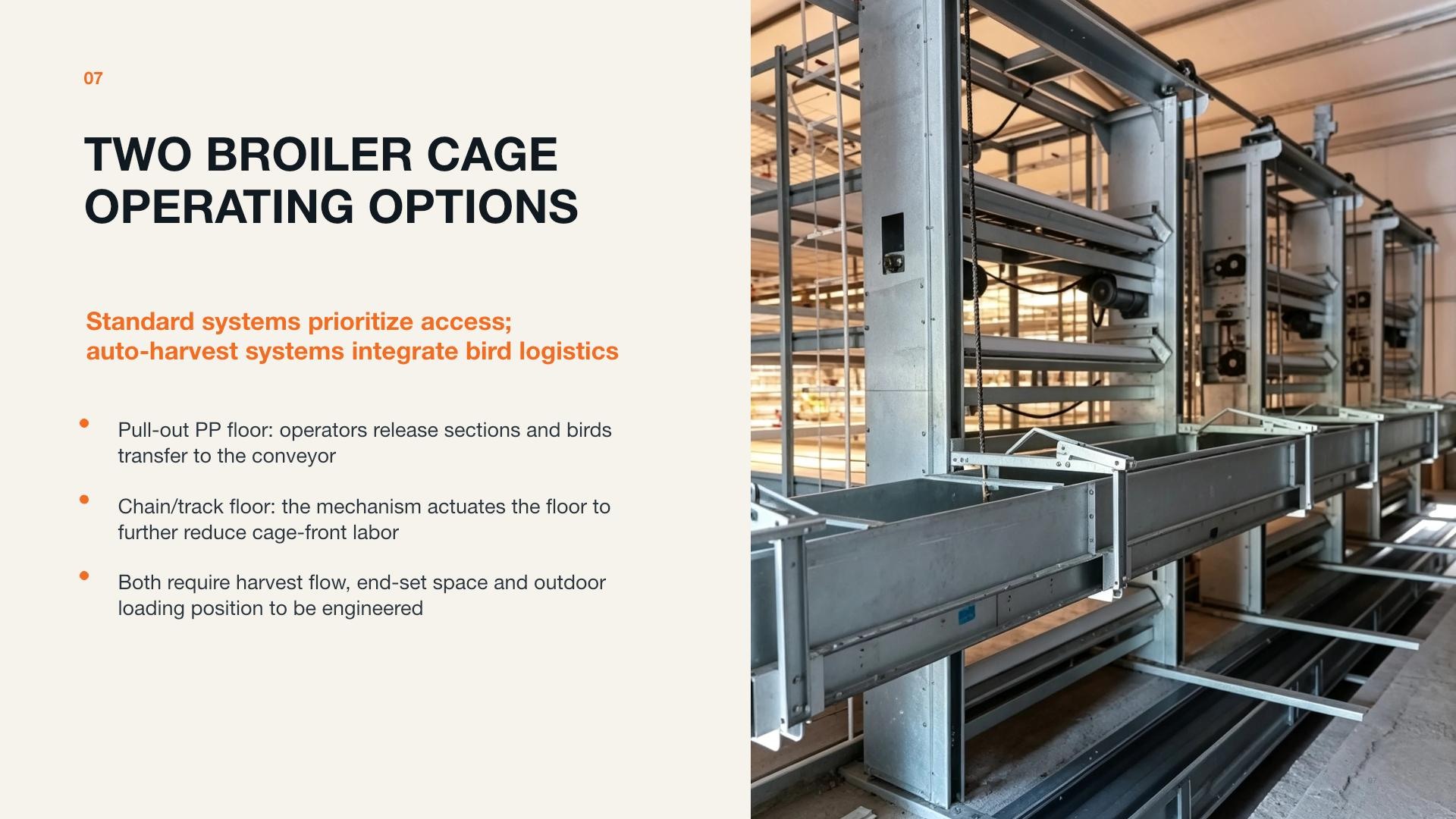

The end-set image shows why harvest, lifting and service require space beyond the cage rows. Different harvest mechanisms must not be treated as one confirmed supply configuration.
Configure for your site：Select the harvest route before freezing end dimensions and drives.Functional connection map · not a construction drawing
Serve each tier according to bird age and density.
Floor, support and sides form the rearing area.
Reserve row-end transfer and batch washdown routes.
Final model and supply scope are set in a written project specification.
Final model and supply scope are set in a written project specification.
Catalogue reference figures. Confirm the selected configuration and applicable local requirements before order.
Review the related equipment above and share your automation goals. The written technical scope defines the final combination.
Target age and batch turnover；Tier support, stocking plan and washdown method；Harvest route, end lift and loading area
