Manure is separated at each cage tier and moved to an end scraper, cross conveyor and defined out-of-house destination. Belt cleaning and moisture management are designed together.
Manure is separated at each cage tier and moved to an end scraper, cross conveyor and defined out-of-house destination. Belt cleaning and moisture management are designed together.
Keeping waste below each cage level limits contact with birds and allows scheduled removal.
Scraper position, belt tracking, tension and wash access are maintenance points at the row end.
The cross-belt and discharge height must match a dryer, collection vehicle or treatment building.
Each catalogue image explains a visible structure or process; pictured configurations are not a fixed supply list.
The source places manure belts below tiers with an end scraper. It shows tier-by-tier collection and movement toward the row end; manure and eggs use separate routes.
Configure for your site：Confirm belt width, scrapers and access by tier.

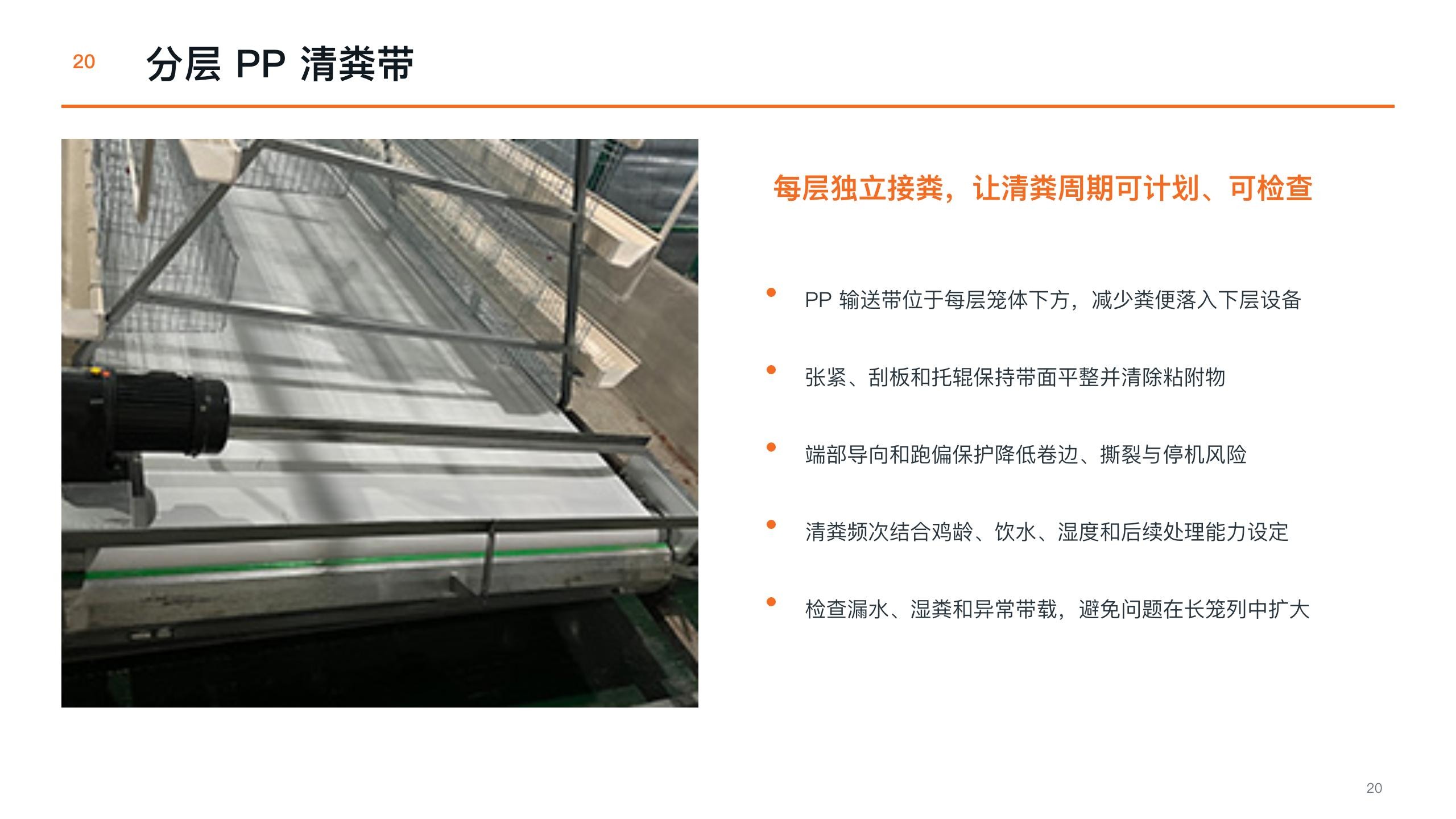

The page focuses on the belt and drive. Tension, tracking, scraping and replacement space matter more than the belt appearance.
Configure for your site：Confirm belt material, drive power and guarding.

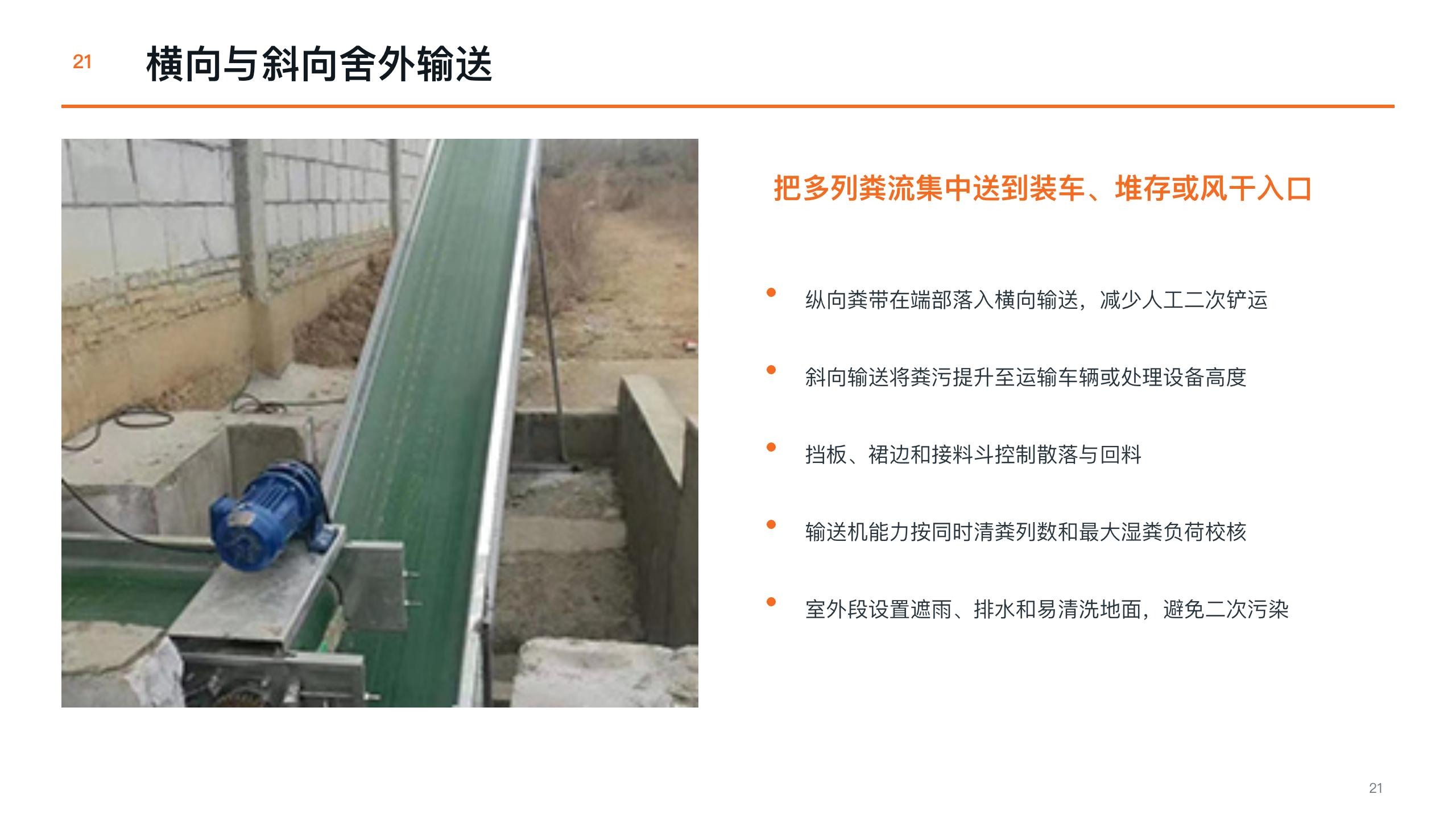

The photograph shows a conveyor extending out of the house. Manure removal is complete only when the outside receiving, transport or treatment route is defined.
Configure for your site：Confirm outlet, discharge height and stormwater separation.Functional connection map · not a construction drawing
Manure belts sit below cage tiers.
Transfer from row belts to cross route.
Connect to storage, drying or transport.
Final model and supply scope are set in a written project specification.
Final model and supply scope are set in a written project specification.
Catalogue reference figures. Confirm the selected configuration and applicable local requirements before order.
Review the related equipment above and share your automation goals. The written technical scope defines the final combination.
Removal frequency, moisture and belt width；End drive, scraper and access；Outside destination, drainage and weather protection
