An open stepped layout with a direct line of sight to the cage front, trough and egg outlet. Suitable when daily manual inspection and a staged automation plan drive the house design.
An open stepped layout with a direct line of sight to the cage front, trough and egg outlet. Suitable when daily manual inspection and a staged automation plan drive the house design.
Stepped rows reduce obstruction between tiers and keep the cage front accessible for observation and routine handling.
A front egg channel or belt can be selected; floor slope and the hand-off from cage to channel need field confirmation.
Manual, semi-automatic and automatic feeding or egg handling can be evaluated against labour and retrofit constraints.
Each catalogue image explains a visible structure or process; pictured configurations are not a fixed supply list.
The supplied view shows tiers opening toward the aisle, with cage fronts and troughs visible. It illustrates access and visibility; final tiers, span and automation scope remain project decisions.
Configure for your site：Confirm aisle width, observation line and reach to every tier.

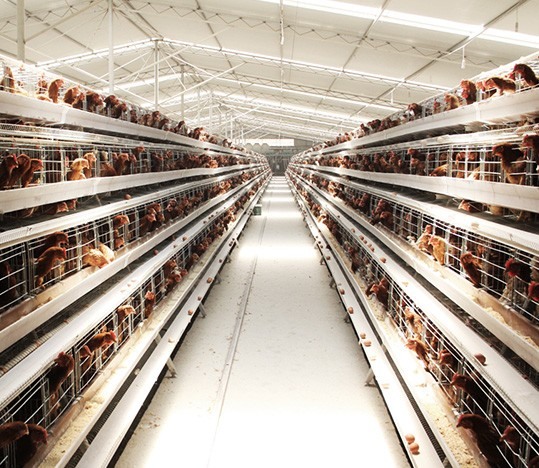

The long-aisle view shows the working side of the cages and sightlines to birds. Compare the cage with the routes for inspection, egg collection and manure removal in one layout.
Configure for your site：Confirm labor mode and the routes for people, eggs and manure.Functional connection map · not a construction drawing
Reach feed and water points on each stepped tier.
Keep cage-front inspection and operating access.
Select manual or automated routes to match the project.
Reference configurations from the supplied catalogue. Final tiers, capacity and stocking density require project and local regulation review.
| Group dimensions | Tiers | Birds per group | Reference area per bird |
|---|---|---|---|
| 1950 × 350 × 380 mm | 3 | 90 | 455 cm²/bird |
| 1950 × 350 × 380 mm | 4 | 120 | 455 cm²/bird |
| 1950 × 450 × 410 mm | 3 | 120 | 438.75 cm²/bird |
| 1950 × 450 × 410 mm | 4 | 160 | 438.75 cm²/bird |
Final model and supply scope are set in a written project specification.
Final model and supply scope are set in a written project specification.
Catalogue reference figures. Confirm the selected configuration and applicable local requirements before order.
Review the related equipment above and share your automation goals. The written technical scope defines the final combination.
House span, eave height and ventilation mode；Manual, semi-automatic or automated egg collection；Trough, water, manure and aisle clearances
Final model and supply scope are set in a written project specification.
