Water is managed from filtration and pressure regulation to each drinking point, with flush and leak inspection designed into the line.
Water is managed from filtration and pressure regulation to each drinking point, with flush and leak inspection designed into the line.
Drinker height and angle are adjusted for chick, pullet, layer or breeder posture.
Filter, regulator and flush point are accessible for routine testing, especially at line ends.
Drip cups and joint details reduce wet belts and damp litter, but require correct pressure setting.
Each catalogue image explains a visible structure or process; pictured configurations are not a fixed supply list.
The supplied image groups nipple, line and accessory components. It is a component reference, not confirmation that all parts are supplied together in every project.
Configure for your site：Select components for animal, age and water quality.

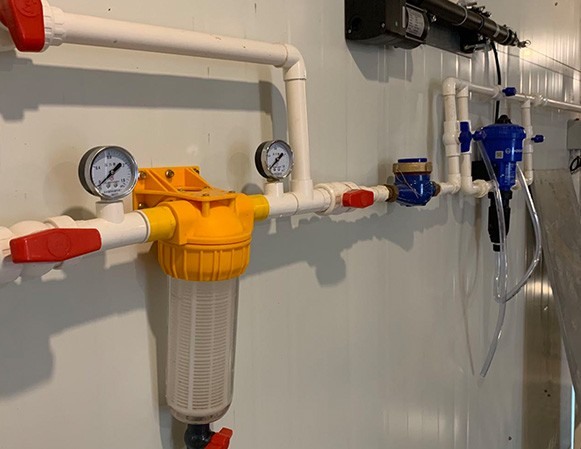

The photograph shows filters, gauges and valves. Filtration, pressure control and flushing belong upstream of the drinker line and must be checked against the water source and line length.
Configure for your site：Confirm water quality, pressure, pipe size and flush drainage.

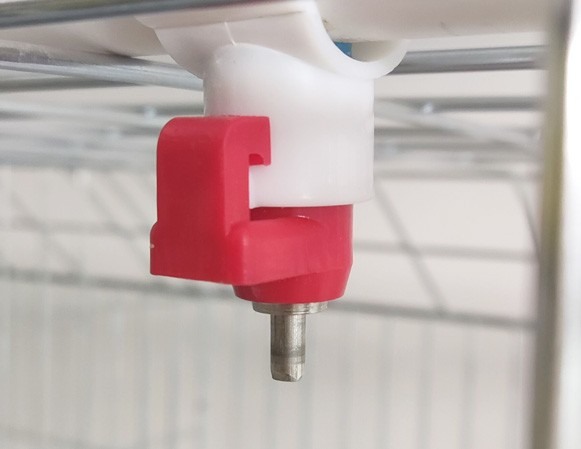

The close-up isolates the nipple point where bird reach and leakage control meet. Height, drip cup and pressure should be specified as a set.
Configure for your site：Review reach, dripping and cleaning by age.Functional connection map · not a construction drawing
Filter and regulate before drinker points.
Deliver across tiers and allow flushing.
Supply water at reachable height.
Final model and supply scope are set in a written project specification.
Final model and supply scope are set in a written project specification.
Catalogue reference figures. Confirm the selected configuration and applicable local requirements before order.
Review the related equipment above and share your automation goals. The written technical scope defines the final combination.
Source water quality, pressure and temperature；House length, tiers and drinker count；Filter flushing, leak checks and drainage
