Bulk storage, replenishment and feed transfer are sized from daily consumption, delivery cycle and house positions. Silo foundations, outlet, auger and bends form one route to the cage or pan feeder.
Bulk storage, replenishment and feed transfer are sized from daily consumption, delivery cycle and house positions. Silo foundations, outlet, auger and bends form one route to the cage or pan feeder.
Capacity is checked against feed density, daily intake, refill interval and local delivery constraints.
Auger distance, lift, bends and outlets are planned with the house rows before foundation work.
Ladder, discharge, rainproof top and foundation access are included in the silo position.
Each catalogue image explains a visible structure or process; pictured configurations are not a fixed supply list.
The cover shows outdoor silos and transfer pipes. Silo count and rated tonnage cannot be inferred from the image; they follow daily consumption, refill cycle and house count.
Configure for your site：Fix foundations, truck access, line direction and service clearance.

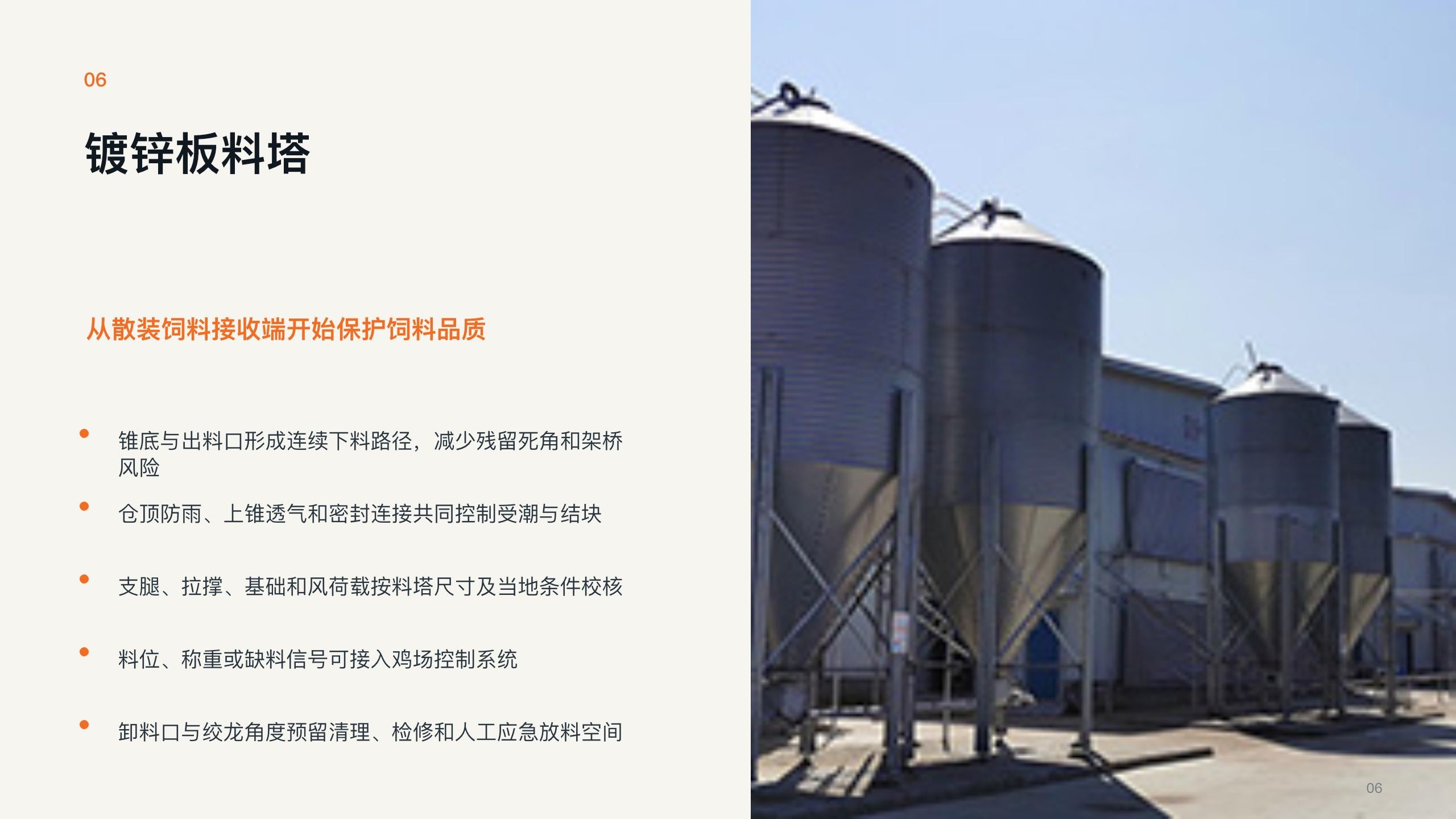

The source silo group shows the relative form of the shell, cone and supports. Final material, volume and foundation loads belong in the technical specification.
Configure for your site：Confirm rated tonnage, foundation load and outlet height.

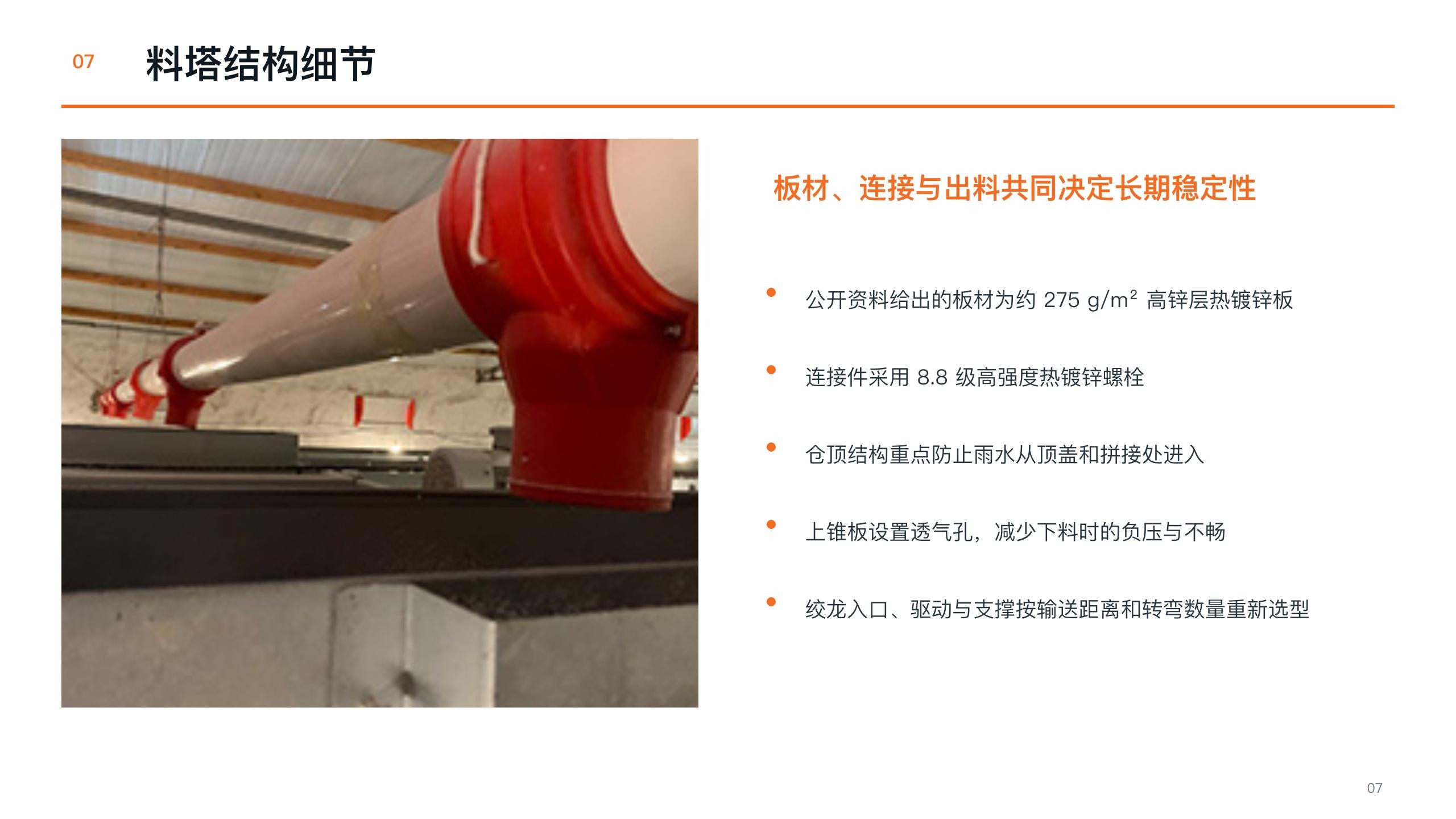

The detail page focuses on a feed-line elbow. The elbow, main line and house entry affect access and blockage recovery and must follow the real route.
Configure for your site：Confirm pipe diameter, bends, house penetration and service area.Functional connection map · not a construction drawing
Truck delivery reaches the silo inlet.
Storage and discharge follow daily demand.
Transfer through the main line to in-house distribution.
Catalogue reference figures. Confirm the selected configuration and applicable local requirements before order.
| Model | Rated tonnage | Diameter | Height | Volume |
|---|---|---|---|---|
| XF180 | 3 t | 约 1.8 m | 约 4.1 m | 约 4.5 m³ |
| XF380 | 4.5 t | 约 1.8 m | 约 5.0 m | 约 7 m³ |
| XF275 | 8 t | 约 2.75 m | 约 5.3 m | 约 13.5 m³ |
Final model and supply scope are set in a written project specification.
Final model and supply scope are set in a written project specification.
Catalogue reference figures. Confirm the selected configuration and applicable local requirements before order.
Review the related equipment above and share your automation goals. The written technical scope defines the final combination.
Daily feed use, refill interval and truck type；Silo tonnage, foundation and drainage；Line length, elbows and house entry
Final model and supply scope are set in a written project specification.
