A fine-scale cage format for quail eggs or meat birds. Mesh aperture, feeder edge and egg channel are selected for the small body and egg size; layout depends on purpose and age.
A fine-scale cage format for quail eggs or meat birds. Mesh aperture, feeder edge and egg channel are selected for the small body and egg size; layout depends on purpose and age.
Mesh and door geometry are checked to reduce escape and foot injury.
A gentle slope and well-aligned narrow egg channel limit rolling distance and collisions.
Feed edge height and nipple position are set for quail reach, with manure clearance below.
Each catalogue image explains a visible structure or process; pictured configurations are not a fixed supply list.

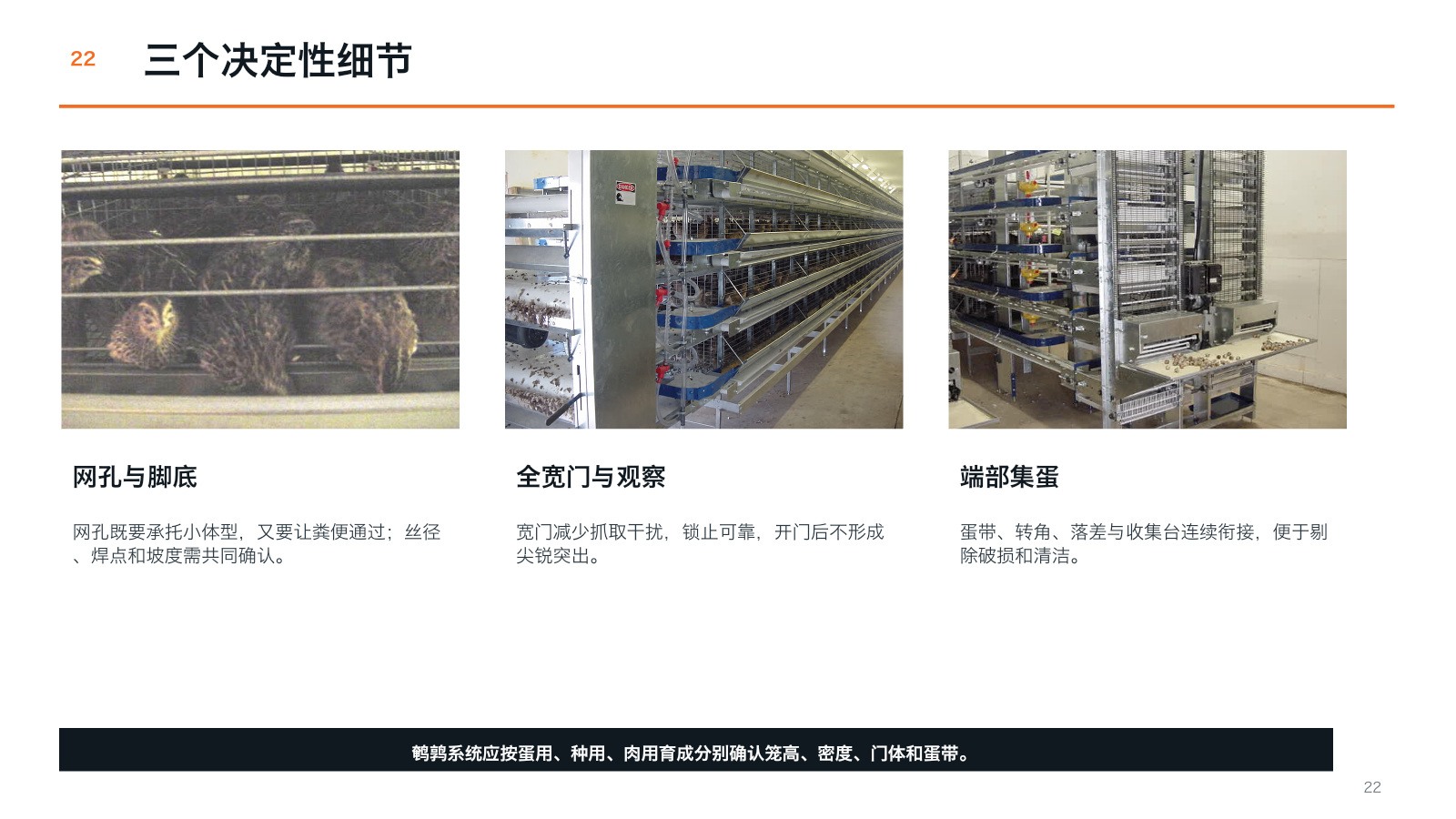

The cover shows tiered quail cages and a front trough. Mesh, access doors and egg edge must be configured for quail; a scaled-down layer layout is not a confirmed design.
Configure for your site：Confirm bird size, tiers, doors and mesh.
The center image in the source shows the quail row beside its inspection aisle. Door opening, latch and mesh dimensions still require confirmed equipment drawings.
Configure for your site：Confirm front mesh, side mesh, doors and aisle width.

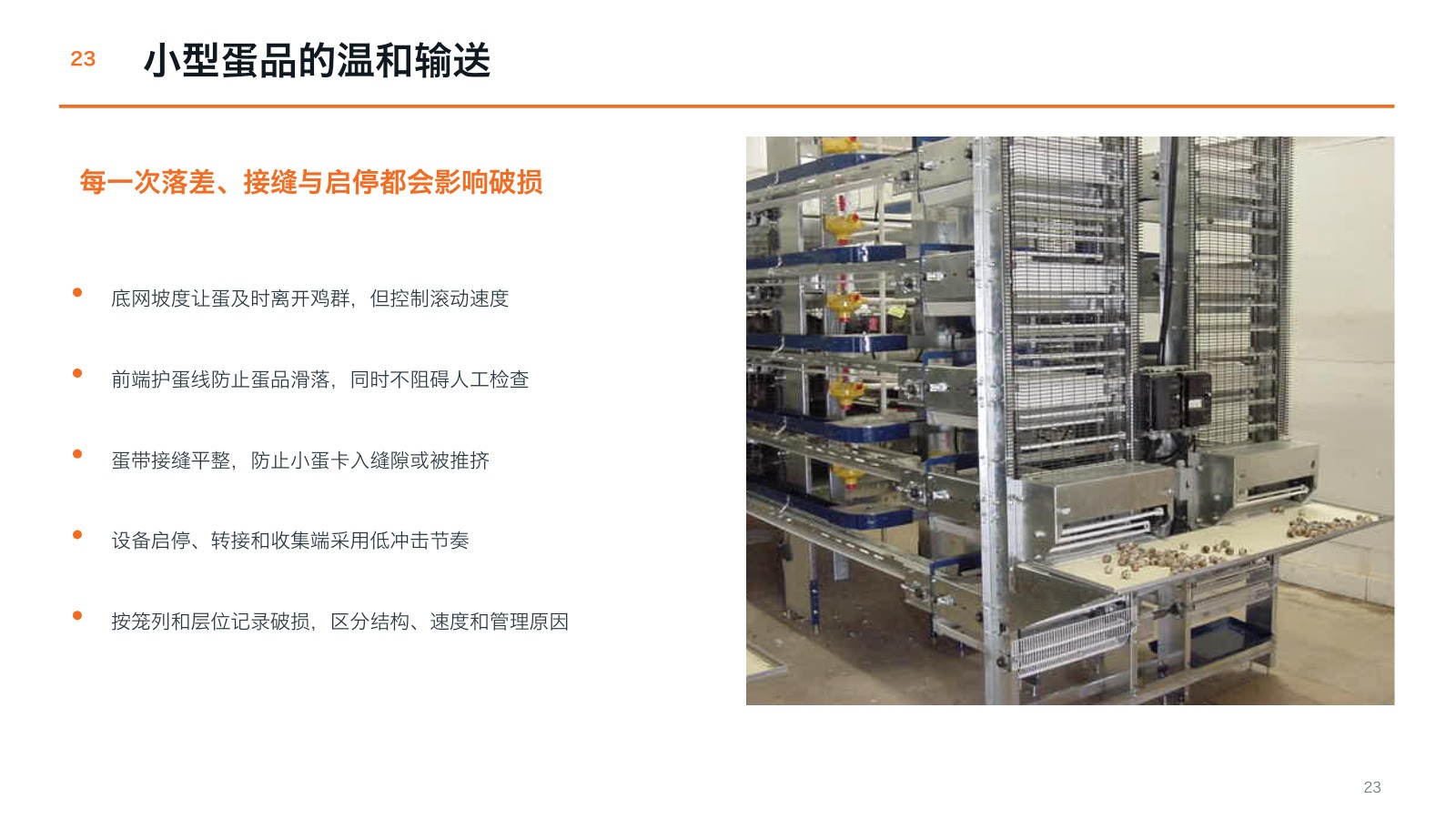

The source page shows a quail egg-collection end. Small eggs require careful review of slope, guidance, handoff and operator access.
Configure for your site：Confirm egg-channel width, transfer method and end access.Functional connection map · not a construction drawing
Set positions for quail body size.
Define mesh, doors and egg edge together.
Connect egg and cleaning routes separately.
Final model and supply scope are set in a written project specification.
Final model and supply scope are set in a written project specification.
Catalogue reference figures. Confirm the selected configuration and applicable local requirements before order.
Review the related equipment above and share your automation goals. The written technical scope defines the final combination.
Production purpose and quail size；Mesh, door, trough and drinkers；Small-egg channel, end set and manure removal
Final model and supply scope are set in a written project specification.
